The Second Installment About The Event Detector Project.





General.


Further Simple Construction Additions:-

Extra Parts List:-

1)  Two strips of 5A Terminal Block,  (there are usually 12 segments in a strip, only 16 segments are required),  DO NOT cut them into single pieces.

2)  Nine different colours of coloured wire for the INPUT to the board.  One of the colours MUST be Black to denote the GND, Ground, -ve or return rail.

3)  Tools, as before.





IMPORTANT NOTE.


There is a confusing section in ~DET_BRD1.GIF~ as D1 to D7 are diodes,  BUT they are used as the data line INPUT names as well in THIS drawing.  (D0), D1 to D7 refers to the data line INPUT names INSIDE ALL OF THIS TEXT.  Take care of this small amount of abiguity.

DET_BRD1





The Simple Extra Construction:-


1)  From Issue1,  Construction_Part_2 fit the multi-coloured coloured wires to the board INPUT,  IF you have not already done so.

2)  Also fit the Black,  GND,  wire.

3)  Cut the Terminal Block strips into 8 pairs,  6 pairs from strip 1 and 2 pairs from strip 2.

4)  Wire up as shown below.


Terminal Block Wiring To The INPUT Side Of The Board:-

(Note, best viewed in ~topaz font 8~.)



                              (A)
              Orange.       +-----+
  D7  *---------------------+-* O | Input 8.  Note, (A), (B), (C), (D), (E)
                        +---+-* O | Ground.         (F), (G) and (H) are
                        |   +-----+                  pairs of terminal
                        |     (B)                    blocks.
              Blue.     |   +-----+
  D6  *-----------------(---+-* O | Input 7.  Note, D0, D1, D2, D3, D4, D5
                        *---+-* O | Ground.         D6, D7 and GND refer to
                        |   +-----+                 the ~DET_BRD1.GIF~
                        |     (C)                   drawing INPUT lines, NOT
              Red.      |   +-----+                 the diodes.
  D5  *-----------------(---+-* O | Input 6.
                        *---+-* O | Ground.
                        |   +-----+
                        |     (D)
              Purple.   |   +-----+
  D4  *-----------------(---+-* O | Input 5.
                        *---+-* O | Ground.
                        |   +-----+
                        |     (E)
              Green.    |   +-----+
  D3  *-----------------(---+-* O | Input 4.
                        *---+-* O | Ground.
                        |   +-----+
                        |     (F)
              Cyan.     |   +-----+
  D2  *-----------------(---+-* O | Input 3.
                        *---+-* O | Ground.
                        |   +-----+
                        |     (G)
              Yellow.   |   +-----+
  D1  *-----------------(---+-* O | Input 2.
                        *---+-* O | Ground.
                        |   +-----+
                        |     (H)
              White.    |   +-----+
  D0  *-----------------(---+-* O | Input 1.
  GND *--*--------------*---+-* O | Ground.
         |    Black.        +-----+
         |
       --+--
       /////



5)  Black is COMMON to one segment of ALL pairs of terminal blocks.

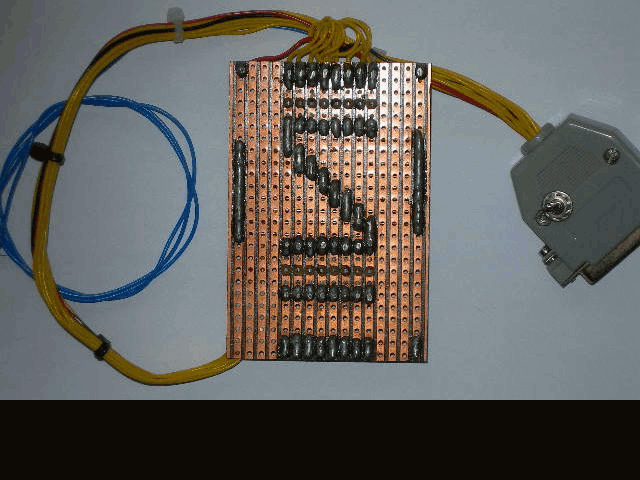

6)  The board is now ready for interfacing with external equipment. 7)  IMPORTANT NOTE!!!, the photographs, ~PARUPPER.JPG~ and ~PARLOWER.JPG~ show a BLUE wire for the -ACK clock pulse wire coming from the 25 Way ~D~ Type plug.  It should be ORANGE but I was idle and couldn't be bothered to look for a length of ORANGE wire and used BLUE instead.  USE ORANGE for this project...

PARUPPER


PARLOWER


8)  Also the photographs show a toggle switch in the ~D~ Type cover, this is purely for MY OWN USE ONLY and is NOT part of the project.  This is used for MY TEST purposes only as I build projects up.





The Circuit Board Description:-


D0 to D7 inclusive AND Ground all work the same way so I will just describe D0 and GND.

As the circuit diagram will not be seen until the next issue,  (Issue3), then you will have to view the board from your home built unit.

The INPUT 470 Ohm resistor is a current limiter and feeds a second 470 Ohm resistor in series with it.  At the tapping point two small signal silicon diodes are placed ~polarity reversed~ across the supply as shown in the sub-circuit below.

(Note, best viewed in ~topaz 8 font~.)



  Pin 14. *-------------------+ <-- +5V.
                              |
                              |
                            --+-- +
                             / \  D8 (1N4148)
                            '---`
                              |
                    R8        |          R16
  Pin 2. *--------\/\/\/------*-*-------\/\/\/-------O <-- D0, White.
                (470 Ohms)      |     (470 Ohms)
                                |
                              --+-- +
                               / \  D16 (1N4148)
                              '---`
                                |
                                |
  Pin 25. *---------------------*--------------*-----O <-- GND, Black .
                                               |
      ^                                        |
      |                                      -----
      +-- 25 Way ~D~ Type plug pin numbers.  /////





If there is a voltage swing greater than APPROXIMATELY +5.6V and less than -0.6V then this voltage is current limited through R16 and CLAMPED to either the +5V rail or GND.  R8 limits this current even further before it enters the parallel port's data line(s).

This is purely to protect the parallel port from any electrical damage.  This board can be used as an interface for virtually ANY project using the parallel port if you are not sure whether damage to the port will result from any experimentation.

Any shunt capacitance across any parallel port data pin and ground is not a problem in this application as ultra-high speed detection is NOT of paramount importance for this project.

However IF the capacitors C1 to C16 inclusive are fitted then this board can be used for something completely different,  see Issue3 for this special extra application.  These capacitors are 47pF ceramic types.




The Simple ARexx Script File To Run This Project:-


Note,  from a CLI/Shell ONLY type   "RX PARINPUT.rexx"   without the quotes.



/* ----------------------------------------------- */
/* 8 channel input detector using the PAR: device. */
/*            (C)2005, B.Walker, G0LCU.            */
/* ----------------------------------------------- */
/* Use ECHO for printing to the screen and SAY for */
/*      printing any variables to the screen.      */
/* ----------------------------------------------- */
/*   IMPORTANT!!!, run ONLY from a SHELL or CLI.   */
/* ----------------------------------------------- */


/* Show my version number and (C) for one line only. */
/* (Note these two lines can be omitted.) */
    ECHO 'c'x
    ECHO '$VER: PARINPUT.rexx_Version_0.80.00_(C)01-06-2006_B.Walker_G0LCU.'
    ECHO
    ECHO 'Press ~Ctrl C~ to quit the program...'


/* Set up any variables. */
    ParaByte = ''
    MyByte = ''


/* Set the signal for breaking the script, ~Ctrl C~. */
    SIGNAL ON BREAK_C


/* ------------------------------------------------------------------- */
/* This is the main working loop for accessing the parallel port. */
    DO FOREVER

/* Open up a channel for reading from the parallel port. */
    OPEN(ParaByte, 'PAR:', 'R')

/* Read a single binary character from the port. */
    MyByte = READCH(ParaByte, 1)

/* If MyByte is a NULL then this corresponds to the EOF, 0, so correct */
/* it by making sure ALL NULLs are given the value of 0. */
    IF MyByte = '' THEN MyByte = 0

/* All major data access done, NOW IMMEDIATELY close the channel. */
    CLOSE(ParaByte)

/* Test each data bit and IF SET to 0 then trigger the hideous voice. */
    IF BITTST(MyByte, 0) = 0 THEN ADDRESS COMMAND 'SYS:Utilities/Say "WARNING!!!, channel ONE armed."'
    IF BITTST(MyByte, 1) = 0 THEN ADDRESS COMMAND 'SYS:Utilities/Say "WARNING!!!, channel TWO armed."'
    IF BITTST(MyByte, 2) = 0 THEN ADDRESS COMMAND 'SYS:Utilities/Say "WARNING!!!, channel THREE armed."'
    IF BITTST(MyByte, 3) = 0 THEN ADDRESS COMMAND 'SYS:Utilities/Say "WARNING!!!, channel FOUR armed."'
    IF BITTST(MyByte, 4) = 0 THEN ADDRESS COMMAND 'SYS:Utilities/Say "WARNING!!!, channel FIVE armed."'
    IF BITTST(MyByte, 5) = 0 THEN ADDRESS COMMAND 'SYS:Utilities/Say "WARNING!!!, channel SIX armed."'
    IF BITTST(MyByte, 6) = 0 THEN ADDRESS COMMAND 'SYS:Utilities/Say "WARNING!!!, channel SEVEN armed."'
    IF BITTST(MyByte, 7) = 0 THEN ADDRESS COMMAND 'SYS:Utilities/Say "WARNING!!!, channel EIGHT armed."'
    END
/* ------------------------------------------------------------------- */


/* Cleanup and exit from the script. */
Break_C:
    ECHO 'c'x'7'x
    ECHO 'Ctrl C detected program closing down...'
    EXIT




Note that for this program to work the command/utility called ~Say~ MUST be in the ~SYS:Utilities/~ drawer on the working computer,  along with the relevant handler, device and library.

The description of how it works is very similar to the file(s) in the PAR_READ.lha archive found on AMINET.

EACH data line of the parallel port is read using BITTST,  (Bit Test),  and if set low will trigger the hideous voice to annoy you with this fact.  Because it is SO obnoxious you just have to investigate this/these event(s) to remove this whining voice.
